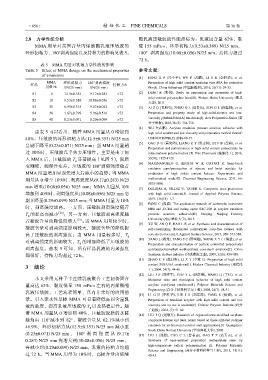

Page 224 - 《精细化工》2021年第4期

·858· 精细化工 FINE CHEMICALS 第 38 卷

2.8 力学性能分析 酯乳液压敏胶的性能指标为：乳液固含量 62%，黏
MMA 用量对高固含量丙烯酸酯乳液压敏胶的 度 155 mPa·s，环形初粘力(9.53±0.389) N/25 mm，
环形初粘力、180°剥离强度以及持粘力的影响见表 5。 180°剥离强度(10.08±0.056) N/25 mm，持粘力超过
72 h。
表 5 MMA 用量对乳液力学性能的影响
Table 5 Effect of MMA dosage on the mechanical properties 参考文献:
of emulsions
[1] FENG X P (冯小平), WU P (武鹏), LI S H (李胜华), et al.
MMA 环形初粘力 180°剥离强度 Preparation of high solid content emulsion type PSA for protective
样品 持粘力/h
用量/% /(N/25 mm) /(N/25 mm) film[J]. China Adhesives (中国胶黏剂), 2016, 25(11): 29-33.
S1 0 12.5±0.353 9.17±0.283 >72 [2] DENG R (邓锐). Study on preparation and properties of high-
solid-content polyacrylate latex[D]. Wuhan: Hubei University (湖北
S2 10 9.53±0.389 10.08±0.056 >72
大学), 2011.
S3 20 6.95±0.318 9.07±0.042 >72 [3] AI Z Q (艾照全), ZHOU Q L (周奇龙), SUN G L (孙桂林), et al.
S4 30 1.67±0.799 5.96±0.516 >72 Preparation and property study of high-solid-content and low-
S5 40 0.23±0.071 0.29±0.099 >72 viscosity p(MMA/BA/AA) emulsions[J]. Acta Polymerica Sinica (高
分子学报), 2005,36 (5): 754-759.
[4] WU P(武鹏). Acrylate emulsion pressure-sensitive adhesive with
由表 5 可以看出，随着 MMA 用量从 0 增加到 high solid content and low viscosity and preparation method thereof:
40%，压敏胶的环形初粘力从(12.5±0.353) N/25 mm CN104371607B[P]. 2016-08-17.
[5] GAO D G (高党鸽), LIANG Z Y (梁志扬), LYU B (吕斌), et al.
急剧下降至(0.23±0.071) N/25 mm；当 MMA 用量超
Preparation and performances of high solid content polyacrylate by
过 30%时，压敏胶几乎失去压敏性。主要是由于加 miniemulsion polymerization [J]. Fine Chemicals (精细化工), 2016,
入 MMA 后，压敏胶的 T g 显著提高（见图 5），胶膜 33(10): 1125-1129.
[6] MARINANGELO G, HIROTA W H, GIUDICI R. Semi-batch
变刚硬，润湿性变差。压敏胶的 180°剥离强度随着
emulsion copolymerization of styrene and butyl acrylate for
MMA 用量增加呈现先增大后减小的趋势。当 MMA production of high solids content latexes: Experiments and
用量从 0 增至 10%时，剥离强度从(9.17±0.283) N/25 mathematical model[J]. Chemical Engineering Science, 2011, 66:
5875-5890.
mm 增至(10.08±0.056) N/25 mm；MMA 用量从 10% [7] DELIBAS A, YILDIZ U, TAUER K. Composite latex production
增加到 40%时，剥离强度从(10.08±0.056) N/25 mm 急 with high solid content[J]. Journal of Applied Polymer Science,
剧下降至(0.29±0.099) N/25 mm；当 MMA 用量为 10% 2019, 136(18): 1-7.
[8] FANG C (房成). The application research of carboxylic monomers
时，剥离强度最高。一方面，压敏胶剥离强度随着 MBI and β-CEA and curing agent SAC-100 in acrylate emulsion
T g 的提高而减小 [26] ；另一方面，压敏胶剥离强度随 pressure sensitive adhesives[D]. Nanjing: Nanjing Forestry
着凝胶含量的降低而增大 [27] 。当 MMA 用量较少时， University (南京林业大学), 2015.
[9] XU W, AN Q F, HAO L F, et al. Synthesis and characterization of
凝胶含量对剥离强度影响较大，凝胶含量的降低提 self-crosslinking fluorinated polyacrylate soap-free lattices with
core-shell structure[J]. Applied Surface Science, 2013, 268: 373-380.
高了压敏胶的剥离强度；当 MMA 用量较多时，T g
[10] YANG L (杨龙), TANG S C (唐颂超), WANG X Y (王锡莹), et al.
对剥离强度的影响较大，T g 的增加降低了压敏胶的
Preparation and characterization of particle controlled poly(n-butyl
剥离强度。由表 5 可知，所有样品乳液的内聚强度 acrylate)/poly(methyl methacrylate) core-shell emulsion[J]. China
都很好，持粘力均超过 72 h。 Synthetic Rubber Industry (合成橡胶工业), 2009, 32(6): 454-458.
[11] ZHAO C Y (赵晨阳), LI X Y (李效玉). Preparation of high solid
3 结论 content St/BA/AA emulsion[J]. Modern Chemical Industry (现代化
工), 2004, 24(7): 44-46.
[12] LIU J P (刘建平), SUN Y L (孙彦琳), WANG H (王红), et al.
本文采用无种子半连续乳液聚合工艺制备固含 Monomer ratio and rheological behavior of high solid content
量高达 62%、黏度低至 150 mPa·s 左右的丙烯酸酯 acrylate copolymer emulsions[J]. Polymer Materials Science and
Engineering (高分子材料科学与工程), 2008, 24(7): 48-51.
乳液压敏胶，工艺流程简单，具有非常好的应用前
[13] LI G H (李桂华), LIU J S (刘军深), YANG S (杨硕), et al.
景。引入亲水性单体 MMA 可显著降低高固含量乳 Preparation of emulsion acrylate with high solid content and low
液的黏度，提高乳液压敏胶的 T g 以及热稳定性。随 viscosity and its use in sealants[J]. Chinese Polymer Bulletin (高分
子通报), 2014, (7): 51-60.
着 MMA 用量从 0 增加到 40%，压敏胶胶膜的水接 [14] LIU J Q (刘敬芹). Research of organosilicone-modified acrylates
触角由 116°减小到 82°，凝胶含量从 62.1%减小到 composite latexes and latex paints based on these silylated polymer
46.9%，环形初粘力从(12.5±0.353) N/25 mm 减小至 emulsion for architectural exterior wall applications[D]. Guangzhou:
South China Normal University (华南师范大学), 2002.
(0.23±0.071) N/25 mm ， 180° 剥离强度从 (9.17± [15] LIU J (刘捷), CAO C L (曹春雷), GAO T Z (高天正), et al.
0.283) N/25 mm 先增大到(10.08±0.056) N/25 mm， Synthesis of heat-resistant poymethyl methacrylate resin by
再减小到(0.29±0.099) N/25 mm，乳液的持粘力均超 high-temperature radical polymerization [J]. Polymer Materials
Science and Engineering (高分子材料科学与工程), 2015, 31(11):
过 72 h。当 MMA 用量为 10%时，高固含量丙烯酸 40-43.
